Ubuntu 编译环境搭建
（1）首先升级默认的 Python3
（2）安装 Git
（3）安装CMake
（3）下载 ESP-IDF
git clone https://gitee.com/EspressifSystems/esp-gitee-tools.git
git clone -b release/v5.5 https://gitee.com/EspressifSystems/esp-idf.git
cd esp-gitee-tools
./submodule-update.sh ../esp-idf后续更新子模块 git submodule update --init --recursive
（4）配置
进入 esp-idf 目录
export IDF_GITHUB_ASSETS="dl.espressif.com/github_assets" #这是个临时的环境变量
./install.sh all
. ./export.sh
出现这个就成功了：
Checking "python3" ...
Python 3.11.9
"python3" has been detected
Activating ESP-IDF 5.5
Setting IDF_PATH to '/Dev-Tools/esp-idf'.
* Checking python version ... 3.11.9
* Checking python dependencies ... OK
* Deactivating the current ESP-IDF environment (if any) ... OK
* Establishing a new ESP-IDF environment ... OK
* Identifying shell ... bash
* Detecting outdated tools in system ... OK - no outdated tools found
* Shell completion ... Autocompletion code generated
Done! You can now compile ESP-IDF projects.
Go to the project directory and run:
idf.py build
python 报错：
File "/usr/local/lib/python3.11/tarfile.py", line 1929, in xzopen
raise CompressionError("lzma module is not available") from None
tarfile.CompressionError: lzma module is not available
解决办法：
sudo apt install liblzma-dev
然后重新编译、安装ESP32开发教程（0）— 搭建开发环境（Ubuntu图文版）-阿里云开发者社区
（6）
每次使用打开新的终端，必须先激活下环境变量 export.sh，麻烦。

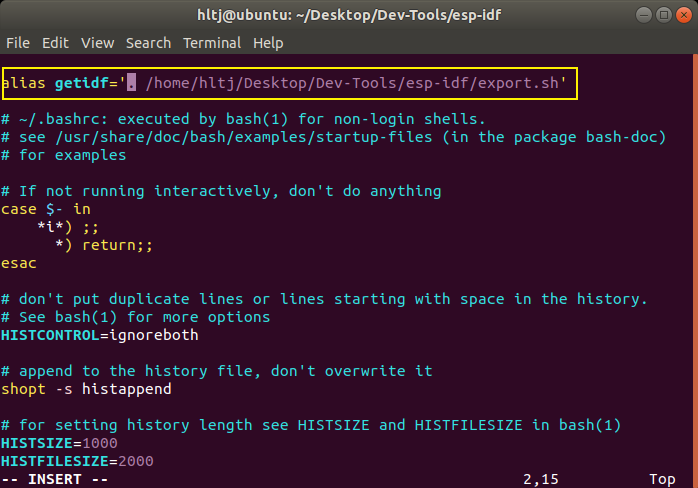

sudo vim ~/.bashrc在第一行上面添加：
alias getidf='. /opt/ESP32_Workspace/esp-idf/export.sh'
注意前面有个点，表示执行脚本。
保存后重新加载：
source ~/.bashrc然后使用 getidf 就能简单的获取 ESP32 的环境了。
idf.py build 编译
idf.py monitor 串口消息
（5）ubuntu上烧录和查看
ESP32开发教程（0）— 搭建开发环境（Ubuntu图文版）-阿里云开发者社区
远程编译脚本
build.py
import os
import paramiko
import shutil
from scp import SCPClient
from colorama import Fore, Back, Style, init
def remote_compile():
# 固定参数配置
host = "192.168.1.4"
port = 22
username = "hltj"
password = "LZX#lzx7586"
remote_path = "/home/hltj/Desktop/Dev-Tools/ESP32-Remote-Build/" # 替换为远程主机上的目标路径
compile_command = ". /home/hltj/Desktop/Dev-Tools/esp-idf/export.sh && idf.py fullclean && idf.py build" # 固定编译命令
# 获取当前目录名和内容
local_dir = os.getcwd() # 当前完整路径 E:\ProgramFiles\ESP32-IDF\......getting_started\station
dir_name = os.path.basename(local_dir) # 当前文件夹 station
remote_full_path = os.path.join(remote_path, dir_name)
# ubuntu上目录：/home/hltj/Desktop/Dev-Tools/ESP32-Remote-Build/station
remote_build_path = os.path.join(remote_full_path, 'build').replace('\\', '/')
# ubuntu上目录：/home/hltj/Desktop/Dev-Tools/ESP32-Remote-Build/station/build
local_build_path = os.path.join(local_dir, 'build')
# E:\ProgramFiles\ESP32-IDF\......getting_started\station\build
# 创建SSH客户端
ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())
try:
print(Style.BRIGHT + Fore.BLUE + f"[Connect To Host] {host}:{port} @ {username}")
# print(f"[Connect To Host] {host}:{port} @ {username}")
ssh.connect(host, port=port, username=username, password=password)
scp = SCPClient(ssh.get_transport())
# 删除本地build目录
if os.path.exists(local_build_path):
print(Style.BRIGHT + Fore.RED + f"[Delete Local Build Dir] {local_build_path}")
shutil.rmtree(local_build_path)
# 删除ubuntu中build目录
print(Style.BRIGHT + Fore.RED + f"[Delete Remote Build Dir] {remote_full_path}")
stdin, stdout, stderr = ssh.exec_command(f"rm -rf {remote_full_path}")
stdout.channel.recv_exit_status() # 等待命令完成
# 确保目标路径存在
print(Style.BRIGHT + Fore.GREEN + f"[Transfer Files] \n From Local: {local_dir} \n To Remote: {remote_full_path}")
stdin, stdout, stderr = ssh.exec_command(f"mkdir -p {remote_path}")
stdout.channel.recv_exit_status()
# 1、传输整个目录
scp.put(local_dir, recursive=True, remote_path=remote_full_path)
# 2、执行编译命令
print(Style.BRIGHT + Fore.BLUE + f"[Compile Project] ......")
stdin, stdout, stderr = ssh.exec_command(f"cd {remote_full_path} && {compile_command}")
exit_status = stdout.channel.recv_exit_status()
if exit_status != 0:
print(Back.RED + Fore.WHITE + f"编译失败，错误码: {exit_status}")
print(Back.RED + Fore.WHITE + "错误输出:")
print(stderr.read().decode())
return False
# print("编译输出:")
# print(stdout.read().decode())
# 3、将build目录复制回本地
print(Style.BRIGHT + Fore.GREEN + f"[Transfer Files] \n From Remote: {remote_build_path} \n To Local: {local_dir}")
scp.get(remote_build_path, recursive=True, local_path=local_dir) # SSH复制操作
print(Back.BLUE + Fore.WHITE + "[Compile Project Successfully!]")
return True
except Exception as e:
print(Back.RED + Fore.WHITE + f"发生错误: {str(e)}")
return False
finally:
scp.close()
ssh.close()
if __name__ == "__main__":
init(autoreset=True)
print(Back.BLUE + Fore.WHITE + "[功能] 在ubuntu编译并同步到本地")
success = remote_compile()
if not success:
exit(1)
将文件打包为exe
pyinstaller --onefile .\build.py然后添加到环境变量中
当 idf.py menuconfig 时，windows上可能运行不了，因为ubuntu中的ninja版本和windows不一样，还没解决。
sync_local.py
这个什么时候用？在ubuntu配置菜单、编译后、或修改了某些文件，同步到Windows中。
import os
import paramiko
import shutil
from scp import SCPClient
from colorama import Fore, Back, Style, init
def remote_compile():
host = "192.168.1.4"
port = 22
username = "hltj"
password = "LZX#lzx7586"
remote_path = "/home/hltj/Desktop/Dev-Tools/ESP32-Remote-Build/"
local_dir = os.getcwd()
local_path = os.path.dirname(os.getcwd()) # 当前路径的上级路径 E:\ProgramFiles\ESP32-IDF\......getting_started
dir_name = os.path.basename(local_dir) # 当前文件夹 station
remote_full_path = os.path.join(remote_path, dir_name) # ubuntu上目录：/home/hltj/Desktop/Dev-Tools/ESP32-Remote-Build/station
ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())
try:
# print(f"{local_dir}\n{dir_name}\n{remote_full_path}")
print(Style.BRIGHT + Fore.BLUE + f"[Connect To Host] {host}:{port} @ {username}")
ssh.connect(host, port=port, username=username, password=password)
scp = SCPClient(ssh.get_transport())
# SSH复制操作
print(Style.BRIGHT + Fore.GREEN + f"[Transfer Files] \n From Remote: {remote_full_path} \n To Local: {local_dir}")
scp.get(remote_full_path, recursive=True, local_path=local_path)
print(Back.BLUE + Fore.WHITE + "[Successfully!]")
return True
except Exception as e:
print(Back.RED + Fore.WHITE + f"发生错误: {str(e)}")
return False
finally:
scp.close()
ssh.close()
if __name__ == "__main__":
init(autoreset=True)
print(Back.BLUE + Fore.WHITE + "[功能] 同步ubuntu项目到本地")
success = remote_compile()
if not success:
exit(1)
Windows 开发环境搭建

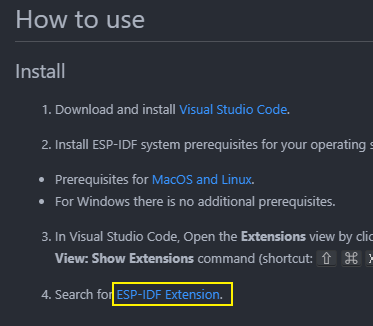

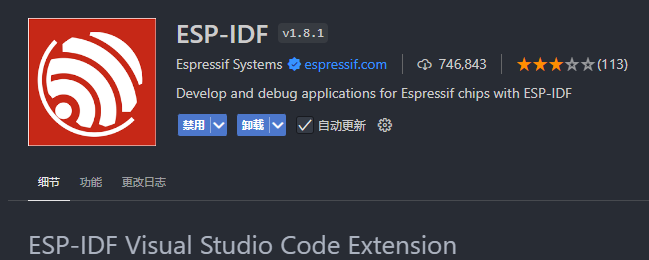

（1）安装vscode插件

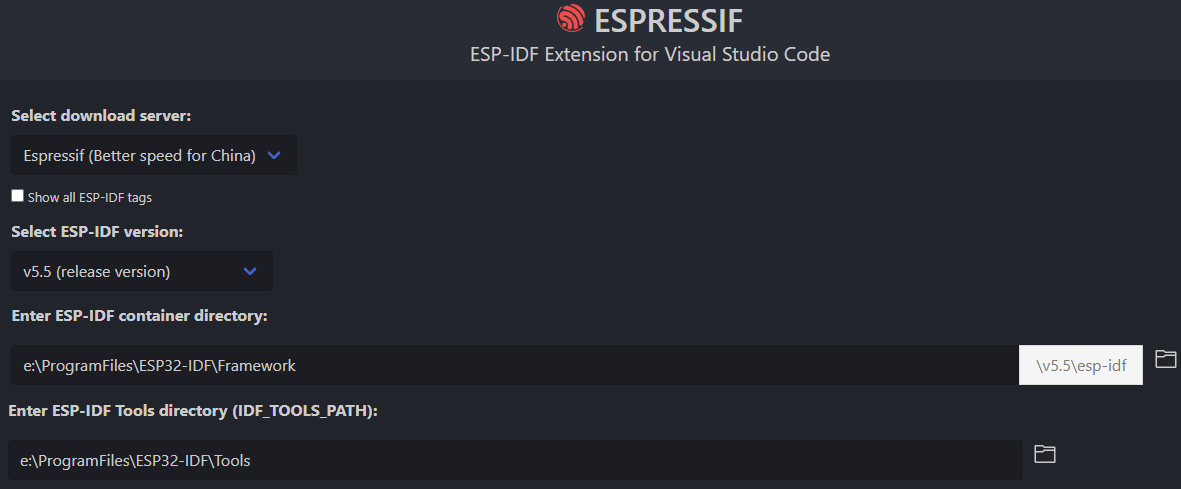

（2）安装 idf 框架
至少要 40 分钟

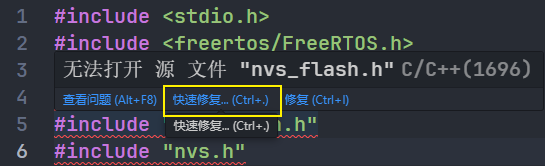

头文件报错问题

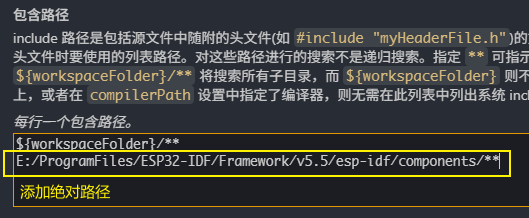

添加上绝对路径：
E:/ProgramFiles/ESP32-IDF/Framework/v5.5/esp-idf/components/**
"name": "Win32",
"includePath": [
"${workspaceFolder}/**",
"E:/ProgramFiles/ESP32-IDF/Framework/v5.5/esp-idf/components/**"

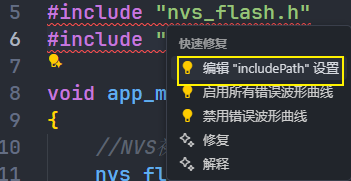

],（1）悬停在报错的头文件上
（2）
（3）
